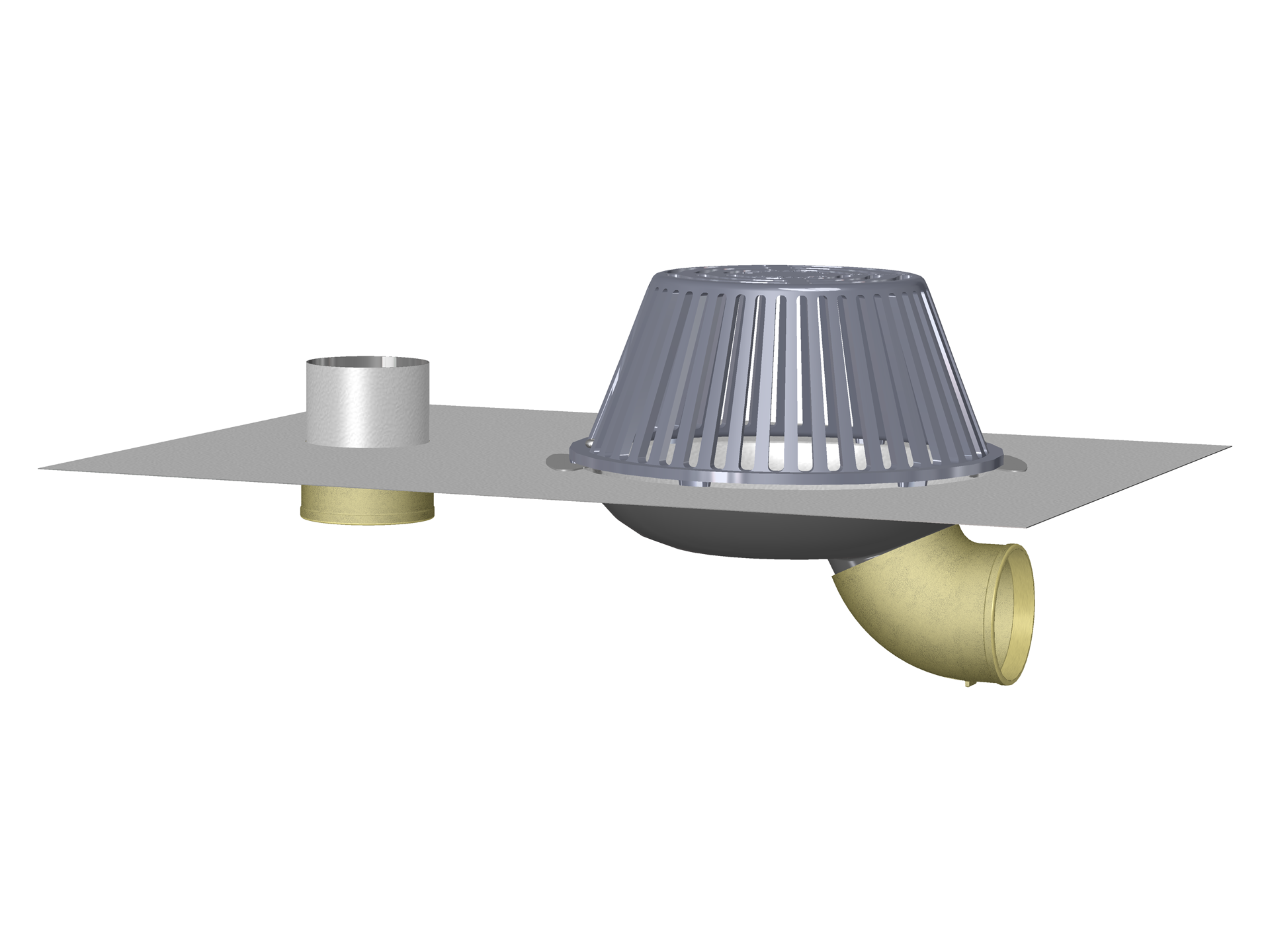

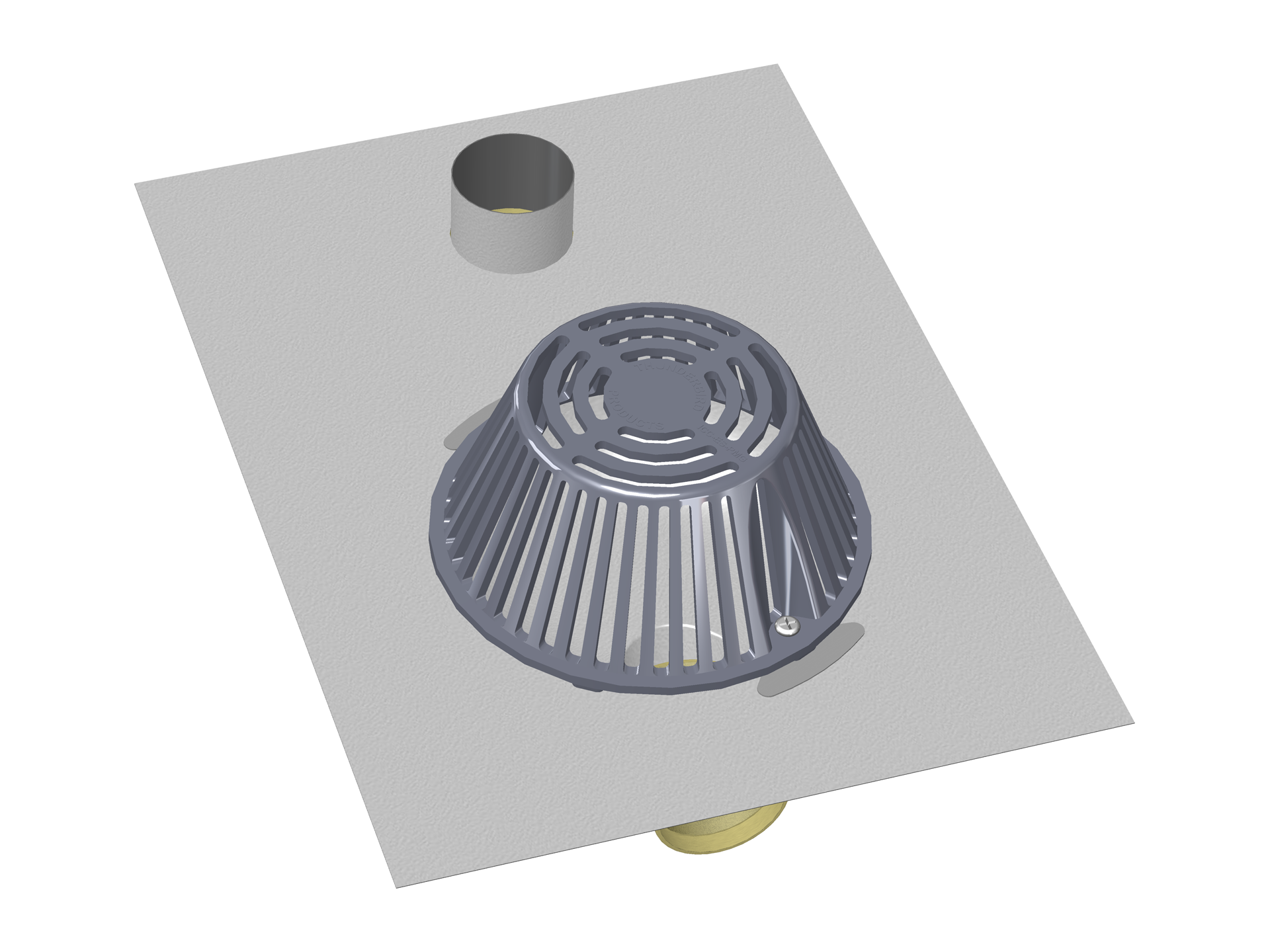

TPO or PVC-CLAD Stainless Steel Side Outlet Roof Drain with Overflow

Please call us at (800) 658-2473 for pricing and availability.
Product information
Product Drawings TPO or PVC-CLAD Stainless Steel Side Outlet Roof Drain with Overflow PDF Drawing
TPO or PVC-CLAD Stainless Steel Side Outlet Roof Drain with Overflow CAD Drawing
Compliance

TPO or PVC-Clad Stainless Steel Side Outlet Roof Drain with seamless flashing, drain basin and integrated overflow. Heat weld TPO or PVC membrane directly to the drain flashing. Comes with strong ABS dome strainer, but also available with optional Flat Grate. 2", 3", and 4" sizes available.

  • Seamless Basin
  • TPO or PVC-Clad Stainless Steel Side Outlet Drain
  • 2", 3", or 4" bronze fitting
  • Heavy duty ABS dome strainer. Also available with optional Flat Grate
  • 10" diameter basin
  • Heat weld directly to the TPO or PVC-Clad drain flashing
  • Manufactured in the USA by Thunderbird Products

Note on Fittings: A no-hub fitting is the standard fitting used in the industry. With this fitting, a rubber coupling is used to connect the drain to the drainage pipe.

Part Numbers
TPO-RDCBHZ2NH 2" No-Hub TPO-Clad Stainless Steel Side Outlet Roof Drain with Overflow
TPO-RDCBHZ3NH 3" No-Hub TPO-Clad Stainless Steel Side Outlet Roof Drain with Overflow
TPO-RDCBHZ4NH 4" No-Hub TPO-Clad Stainless Steel Side Outlet Roof Drain with Overflow
PVC-RDCBHZ2NH 2" No-Hub PVC-Clad Stainless Steel Side Outlet Roof Drain with Overflow
PVC-RDCBHZ3NH 3" No-Hub PVC-Clad Stainless Steel Side Outlet Roof Drain with Overflow
PVC-RDCBHZ4NH 4" No-Hub PVC-Clad Stainless Steel Side Outlet Roof Drain with Overflow
For PVC part numbers, simply replace TPO with PVC, ex. TPO-RDCB2NH becomes PVC-RDCB2NH. Also, available with optional Flat Grate.

TPO Hardware Installation
